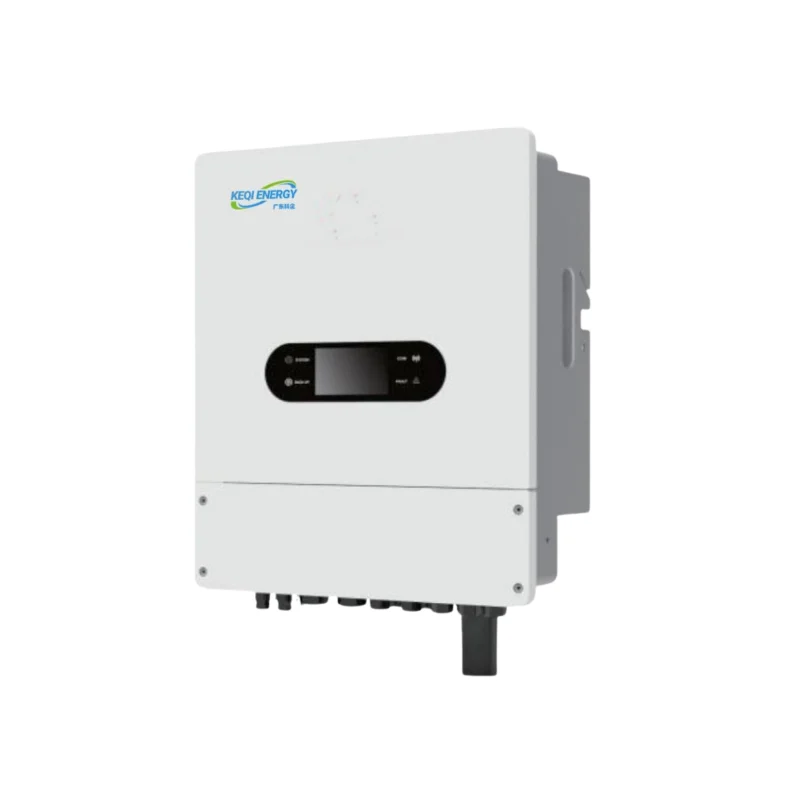

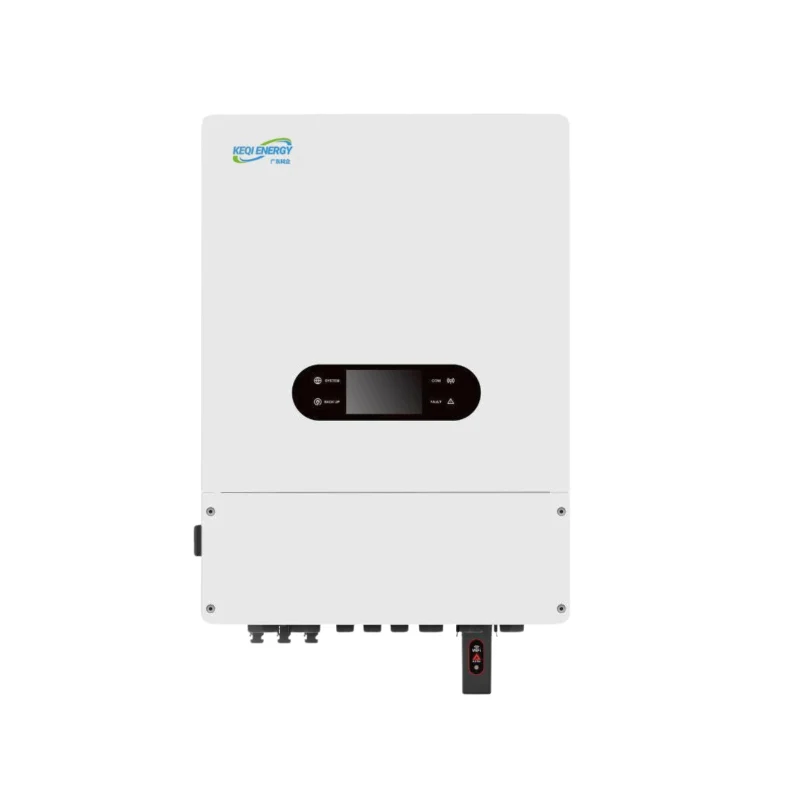

Solar Three Phase Hybrid Inverter 5kW-12kW
Model：
THS3P-5kW/ 6kW/ 7kW/ 8kW/ 10kW/ 12kW
Keqi Energy offers the EU-standard Three-Phase Hybrid Inverter series (5kW-12kW). Specifically designed for 380V/400V grids, it supports 18A high-power modules and 200% PV oversizing. Features 200% off-grid surge power for 15s. Reliable factory-direct supply with OEM/ODM support for global distributors and installers.
Key Feature
High-Current Compatibility (18A/36A): Specially optimized for mainstream high-power PV modules. Supports 18A per string and a total maximum input current of 36A, ensuring maximum energy harvest from Tier 1 solar panels.
200% PV Oversizing Capability: Allows for double the PV input capacity relative to the rated power. This ensures sufficient energy for both off-grid loads and rapid battery charging, even during low-light conditions.
Superior Off-Grid Peak Power: Features a robust 200% peak overload capacity for up to 15 seconds in off-grid mode. Easily handles high starting currents of inductive loads like air conditioners or pumps.
Industrial-Grade Stability: Designed for 380V/400V three-phase grids (50/60Hz). Offers seamless switching and advanced thermal management, making it the ideal choice for stable energy independence in EU-standard regions.
Factory-Direct OEM/ODM Services: We provide customized software, branding, and technical support directly from our production line, ensuring wholesale clients receive the best price-to-performance ratio.
| Model | KQ-THS3P-5KS48P | KQ-THS3P-6KS48P | KQ-THS3P-7KS48P | KQ-THS3P-8KS48P | KQ-THS3P-10KS48P | KQ-THS3P-12KS48P |
|---|---|---|---|---|---|---|
| Rated Power | 5kW | 6kW | 7kW | 8kW | 10kW | 12kW |
| Max. DC Input Power | 10KW | 12KW | 14KW | 16KW | 20KW | 24KW |
| Max. DC Input Voltage | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V |
| MPPT Operating Voltage Range | 200～800V | 200～800V | 200～800V | 200～800V | 200～800V | 200～800V |
| Starting Voltage | 150V | 150V | 150V | 150V | 150V | 150V |
| Max. Input Current | 18A | 18A | 18A | 18A/18A | 36A/18A | 36A/18A |
| MPPT Number | 1 | 1 | 1 | 2 | 2 | 2 |
| Phase Type | 3L + N + PE | 3L + N + PE | 3L + N + PE | 3L + N + PE | 3L + N + PE | 3L + N + PE |
| Max. Output Apparent Power( AC Output On Grid) | 5500VA | 6600VA | 7700VA | 8800VA | 11000VA | 13200VA |
| Rated Output Voltage | 380/400V | 380/400V | 380/400V | 380/400V | 380/400V | 380/400V |
| Rated Output Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Max. Output Current | 8.3A | 10A | 11.6A | 13.3A | 16.7A | 20A |
| Output Power Factor | ~1 (-0.8 leadinng~+0.8 lagging) | ~1 (-0.8 leadinng~+0.8 lagging) | ~1 (-0.8 leadinng~+0.8 lagging) | ~1 (-0.8 leadinng~+0.8 lagging) | ~1 (-0.8 leadinng~+0.8 lagging) | ~1 (-0.8 leadinng~+0.8 lagging) |
| Rated Output Apparent Power(AC Output Off Grid) | 5000VA | 6000VA | 7000VA | 8000VA | 10000VA | 12000VA |
| Max. Output Apparent Power | >200%, 15Sec’ | >200%, 15Sec’ | >200%, 15Sec’ | >200%, 15Sec’ | >200%, 15Sec’ | >200%, 15Sec’ |
| Rated Output Voltage | 380/400V (±2%) | 380/400V (±2%) | 380/400V (±2%) | 380/400V (±2%) | 380/400V (±2%) | 380/400V (±2%) |
| Rated Output Frequency | 50/60Hz (±2%) | 50/60Hz (±2%) | 50/60Hz (±2%) | 50/60Hz (±2%) | 50/60Hz (±2%) | 50/60Hz (±2%) |
| Max. Output Current | 8.3A | 10A | 11.6A | 13.3A | 16.7A | 20A |
| Battery Type | Lithium or lead acid battery | Lithium or lead acid battery | Lithium or lead acid battery | Lithium or lead acid battery | Lithium or lead acid battery | Lithium or lead acid battery |
| Rated Battery Voltage | 48V | 48V | 48V | 48V | 48V | 48V |
| Max. Charging Voltage | ≤60V Configurable | ≤60V Configurable | ≤60V Configurable | ≤60V Configurable | ≤60V Configurable | ≤60V Configurable |
| Max. Charge / Discharge Current | 120A | 125A | 150A | 190A | 210A | 250A |
| Max. Efficiency PV | 98.10% | 98.10% | 98.10% | 98.10% | 98.10% | 98.10% |
| PV Input Reverse Polarity Protection | YES | YES | YES | YES | YES | YES |
| PV Insulation Resistance Detection | YES | YES | YES | YES | YES | YES |
| Residual Current Detection | YES | YES | YES | YES | YES | YES |
| Output Short Circuit Protection | YES | YES | YES | YES | YES | YES |
| Output Over Voltage Protection | YES | YES | YES | YES | YES | YES |
| Operation Temperature | -25 ～ 60℃ | -25 ～ 60℃ | -25 ～ 60℃ | -25 ～ 60℃ | -25 ～ 60℃ | -25 ～ 60℃ |
| Storage Temperature | -30～65℃ | -30～65℃ | -30～65℃ | -30～65℃ | -30～65℃ | -30～65℃ |
| Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Topology | HF isolation | HF isolation | HF isolation | HF isolation | HF isolation | HF isolation |
| Noise | <55dB | <55dB | <55dB | <55dB | <55dB | <55dB |
| IP Grade | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Dimension | 475*683*256mm | 475*683*256mm | 475*683*256mm | 475*683*256mm | 475*683*256mm | 475*683*256mm |
